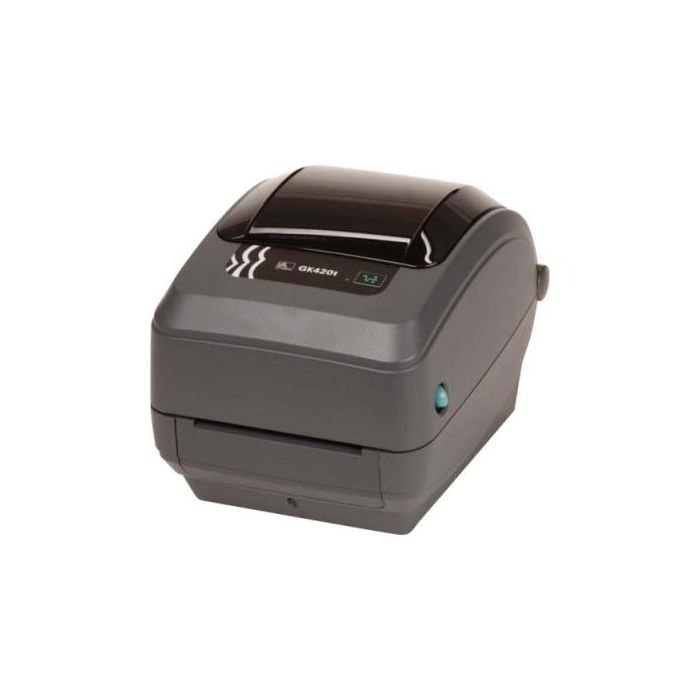

GK420T GK42-102520-000 Zebra Barcode Printer USB descriptions


The GK420t thermal transfer printer and the GK420d direct thermal printer are the ideal option for applications that require network manageability and low total cost of ownership.

GK420T GK42-102520-000 Zebra Barcode Printer USB specs

Features and Specifications

Standard Features

Print speed: up to 5″ (127 mm) per second

Print method: direct thermal/thermal transfer

EPL and ZPL programming languages standard

More Standard Features

OpenACCESS design for easy media loading

Quick and easy ribbon loading system

Dual-wall reinforced plastic construction

32 bit RISC processor

XML-enabled printing

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory Standard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)

Print width: 4.09″ (104 mm)

Print length: 39″ (991 mm)

Print speed: 5″ (127 mm)/sec

Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.25″ (108 mm)

Minimum label and liner width: 0.75″ (19 mm)

Maximum label and liner length: 0.38″ (9.7 mm) to 39″ (991 mm)

Maximum roll diameter: 5″ (127 mm)

Core diameter: 0.5″ (12.7 mm), 1.0″ (25.4 mm), 1.5″ (37.1 mm)

Media thickness: 0.003″ (0.08 mm) to 0.0075″ (0.20 mm)

Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock.
