KSh 152,000.00

In Stock

Description

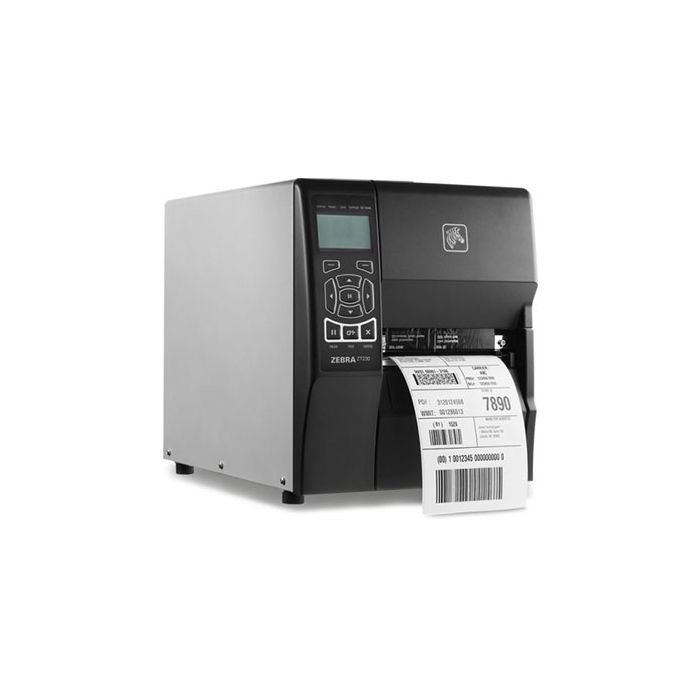

ZT 230 Ethernet Zebra Mid Range Barcode Printer ZT23042-T0E200FZ descriptions

Standard Features

  • Print Methods: Direct thermal and Thermal Transfer (optional)
  • Resolution: 203 dpi

More Standard Features

  • Element Energy Equalizer™ (E3®) for superior print quality
  • USB 2.0 and RS-232 serial ports
  • Dual media sensors – transmissive and reflective sensing technology, selectable through software or front panel
  • Media supply hanger designed for 1” (25mm) through 3” (76mm) core diameters
  • Side loading metal print mechanism with head open lock
  • Link-OS™ environment capable

ZT 230 Ethernet Zebra Mid Range Barcode Printer ZT23042-T0E200FZ

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

300 dpi (12 dots/mm)

Memory:128MB Flash, 128MB RAM

Print width:4.09″/104 mm

Print length:203 dpi: 157″/3,988 mm and 300dpi: 73″/1854 mm (optional)

Print speed:203 dpi: 6″ (152 mm)/sec and 300 dpi: 6″ (152 mm)/sec

Media sensors:Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 4.50″/114 mm

Minimum label and liner width: 0.75″ (19.4 mm)

Maximum non-continuous label length: 39″/991 mm

Maximum Media Roll Size:8.0″ (203 mm) O.D. on a 3″ (76 mm) I.D. core
6.0″ (152 mm) O.D. on a 1″ (25 mm) I.D. core

Media thickness: 0.003″/0.076 mm to 0.010″/0.25 mm

Media types: continuous, die-cut, notch, black mark

Ribbon Characteristics

Outside diameter: 300m = 2.7”/68.6 mm; 450m = 3.2”/81.3 mm

Standard length: 984’/300 m or 1476’/450 m

Ribbon width: 1.57”/40 mm to 4.33”/110 mm

Ribbon setup: Ribbon wound ink-side out

ID Core: 1.0″ (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)

Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)

Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Operating humidity: 20% to 85% non-condensing

Storage humidity: 5% to 85% non-condensing

Energy Star certified auto-detectable 90-265VAC, 48-62 Hz, 100 W Power Supply
