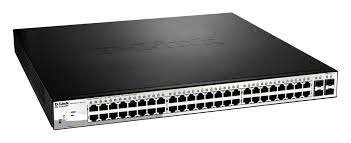

D-Link DGS-1210-52MP 48-Port 10/100/1000BaseT PoE + 4 Combo 1000BaseT/SFP ports Web Smart Switch, 370W PoE budget. (802.3af/802.3at

Call for Price

In Stock

Description

D-Link DGS-1210-52MP 48-Port 10/100/1000BaseT PoE + 4 Combo 1000BaseT/SFP ports Web Smart Switch, 370W PoE budget. (802.3af/802.3at

D-Link’s DGS-1210 Series Web Smart Switches are the latest generation of switches featuring D-Link Green Technology. The DGS-1210 Series integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility, and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritized for a smoother voice performance. The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device’s lifetime, while the DGS-1210-28P/52/52P/52MP feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.

SPECIFICATIONS

Hardware
Interfaces
• 48-port 10/100 / 1000Base-T with PoE
• 4-port 1000Base-X SFP
• Automatic MDI / MDIX on all ports
Indicators • Link / Activity / Speed ??(on port 10/100 / 1000Base-T)
Network Cables • UTP Category 5, 5e (max. 100 m)



Performance
Switching matrix  • 104 Gb / s
Switching Method • Store-and-forward
MAC-address table  • 16K entries per device
Speed forwarding 64-byte packets • 77,4 Mpps
Packet buffer • 3 MB
The amount of RAM • 128 MB
Flash-memory • 16 MB



Software
Standards and function ports
• Ports 1-8 support the standard 802.3at
9-48 • Ports support 802.3af standard
• IEEE 802.3 10Base-T Ethernet (copper twisted pair)
• IEEE 802.3u 100Base-TX Fast Ethernet (copper twisted pair)
• IEEE 802.3ab 1000Base-T Gigabit Ethernet (copper twisted pair)
• IEEE 802.3az
• Auto-negotiation
• IEEE 802.3x Flow Control
• IEEE802.3, IEEE802.3u, IEEE802.3ab
• IEEE802.3az
• IEEE802.3z
Layer 2 Features
• MAC-address table: 16K entries
• IGMP Snooping
• IGMP v1 / v2 Snooping
• Supports up to 256 IGMP-groups
• Support for up to 64 static multicast groups
• IGMP on a VLAN
• Support for IGMP Snooping Querier
• Loopback Detection is
• 802.3ad Link Aggregation: max. 26 groups per device / 8 ports per group
• LLDP
• LLDP-MED
• Jumbo-frame: up to 9,216 bytes
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• Flow Control
• 802.3x
• HOL Blocking Prevention
• Port Mirroring
• One-to-One
• Many-to-One
• Supports mirroring for inbound / outbound / traffic in both directions
• Multicast Filtering
• Redirecting all unregistered groups
• Filtering of unregistered groups
• Customizable interface MDI / MDIX
• MLD snooping v1 / v2 (256 groups)
VLAN
• 802.1Q
• Group VLAN:
• Max. 256 static VLAN-group
• Custom VID: 1-4094
• Asymmetric VLAN
• Auto Voice VLAN
• Max. the number of user-defined OUI: 10
• Max. OUI number by default: 8
• Auto Surveillance VLAN
Quality of service (QoS)
• 802.1p
• 8 queues per port
• Mechanisms for queuing:
• Strict Priority
• Weighted Round Robin (WRR)
• Bandwidth management:
• Based on the port (incoming / outgoing, with a minimum of 64 kbit / s for 10/100/1000)
• QoS based on:
• 802.1p Priority Queues
• DSCP
• ToS
• Class IPv6 traffic
• Non-TCP / UDP-port
Function level 3
• IP-interface
• Supports 1 interface
• IPv6 Neighbor Discovery (ND)
Access Control Lists (ACL)
• Max. the number of access list: 50
• Max. count rules for IPv4, MAC and IPv6: 768
• Each rule can be bound to the same port
• ACL based on:
• 802.1p Priority Queues
• VLAN
• MAC-address
• Ether type
• IP-address
• DSCP
• the type of protocol
• Non-TCP / UDP-port
• Class IPv6-traffic
Security
• Protection from the broadcast / multicast / unicast storm
• D-Link Safeguard Engine
• DHCP Server Screening
• Linking IP-MAC-Port Binding (Intelligent binding)
• Supports 512 entries bindings
• ARP-packet inspection
• Inspection ARP-packet + IP-packet
• Support DHCP Snooping
• Access Control 802.1X port-based
• Prevention of ARP Spoofing Attacks
• Max. number of records: 64
• Traffic Segmentation
• SSH v2
• SSL
• Support v1 / v2 / v3
• Port Security
• Supports up to 64 MAC-addresses per port
• Detection of the problems associated with the coincidence of network addresses
AAA
• Authentication 802.1X:
• Support local database / RADIUS-server
• Supports access control based on port
• Support for EAP, OTP, TLS, TTLS, PEAP
• RADIUS-server with IPv6 support
• Support for MD5 authentication
Standard MIB / RFC
• RFC 783 TFTP
• RFC 951 BootP / DHCP Client
• RFC 1157 SNMP v1, v2, v3
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1769 SNTP
• RFC 1542 BootP / DHCP-Client
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2131 BootP / DHCP-Client
• RFC 2138 RADIUS Authentication
• RFC 2139 RADIUS Authentication
• RFC 2233 Interface Group MIB
• RFC-2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2618 RADIUS Authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS Authentication
• RFC 3164 Syslog
• RFC 3195 Syslog
• RFC 3411-17 SNMP
• D-Link Private MIB
• LLDP MIB
• Zone Defense MIB
• 2233 Interface Group MIB
OAM
• Diagnostic cable
• Restore the factory default settings
Office
• Web-interface
• Utility D-Link Network Assistant
• Simplified CLI
• Telnet-server
• TFTP-client
• Customizable MDI / MDIX
• SNMP
• Support v1 / v2c / v3
• SNMP Trap
• Backup / software update
• Smart Wizard Installation Wizard
• download / upload the configuration file
• System Log
• Max. the number of log entries: 500
• BootP / DHCP-Client
• SNTP
• ICMP v6
• IPv4 / v6 Dual Stack
• Automatic configuration via DHCP
• Setting the time
• SNTP
• RMONv1
• Trusted Host
Technology Green V3.0
• Reduce energy consumption by:
• Determine the status of the connection
• PoE schedule: off / on port PoE schedule
• turn off the indicator
• Sleep mode
• Off ports



Physical parameters
Sizes • 440 mm x 430 mm x 44 mm
Weight • 5,78 kg



terms of Use
Food • 100-240 VAC, 50-60 Hz, internal universal power supply
Max. power consumption
• 483,1 W (PoE enabled)
• 48,9 W (PoE off)
Max. PoE budget • 370W
Power consumption in the standby mode  • 29,5 W / 100 V, W 27.5 / 240
Noise level
• Low speed: 40.4 dB
• High speed: 50.1 dB
Thermal  • 1648,23 BTU / hr
Temperature
• Operating: -5 to 50 ° C
• Storage: -20 to 70 ° C
Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing
